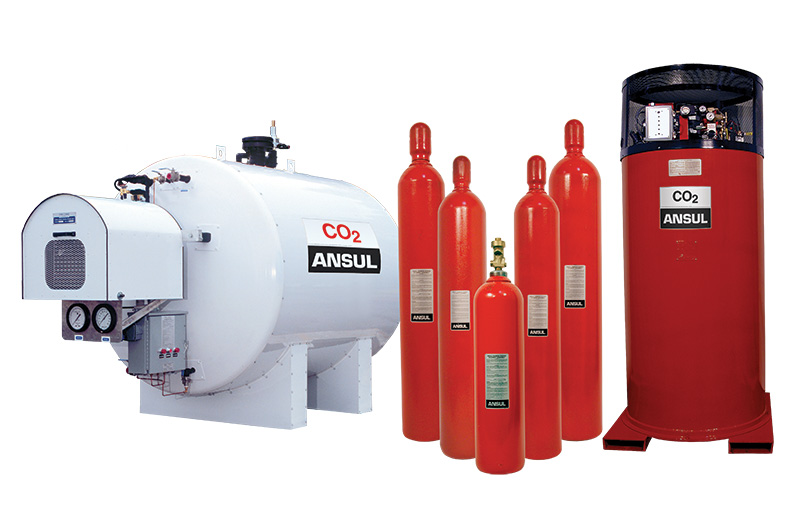

SSI provides both High and Low Pressure Ansul CO2 Systems

Carbon dioxide is a plentiful, non-corrosive gas that does not support combustion nor react with most substances. It has a low toxicity classification by Underwriters Laboratories (Group 5a). It is commonly compressed to the liquid state for storage and transportation in DOT cylinders. Upon release, it discharges under its own pressure giving the appearance of steam as its low temperature crystalizes water in the air. For fire suppression purposes the discharge is designed to raise the carbon dioxide concentration in the hazard. This removes the free oxygen which supports combustion*, and results in fire extinguishment. The resultant lack of free oxygen dictates that total flooding hazards be evacuated immediately, and carbon dioxide from local application be avoided by personnel.

Because the carbon dioxide used in the system is reclaimed from the atmosphere and is not created for the system, this fire suppression system has a zero net effect on the environment.

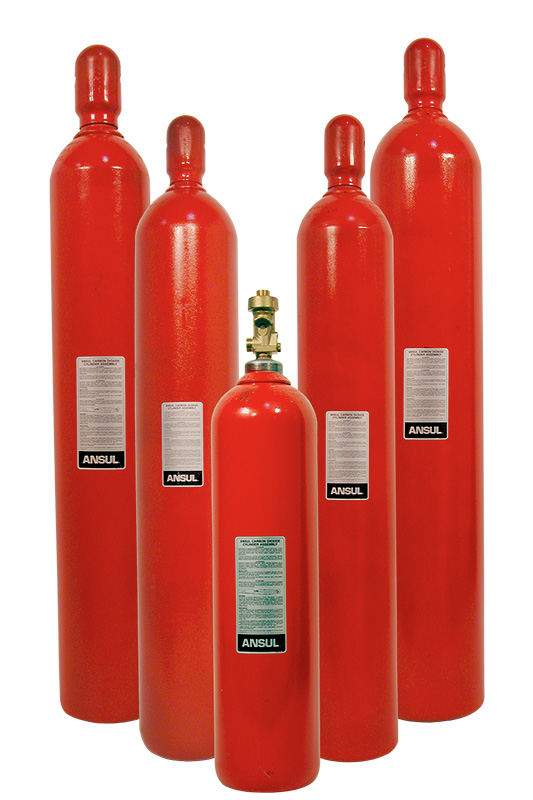

High Pressure Systems

Carbon dioxide extinguishing agent used in ANSUL® engineered systems is particularly useful for hazards where an electrical, nonconductive medium is essential or desirable; where clean-up of other agents presents a problem; or where the hazard obstructions require the use of a gaseous agent. Learn more

The following are typical hazards protected by carbon dioxide systems:


􀀀 Printing presses
􀀀 Vaults
􀀀 Open pits
􀀀 Dip tanks
􀀀 Spray booths
􀀀 Ovens
􀀀 Engine rooms
􀀀 Coating machines
􀀀 Process equipment
􀀀 Hoods and ducts
􀀀 Flammable gas or liquid storage areas
􀀀 Turbine generators
􀀀 Rolling mills
􀀀 Coal grinding and storage

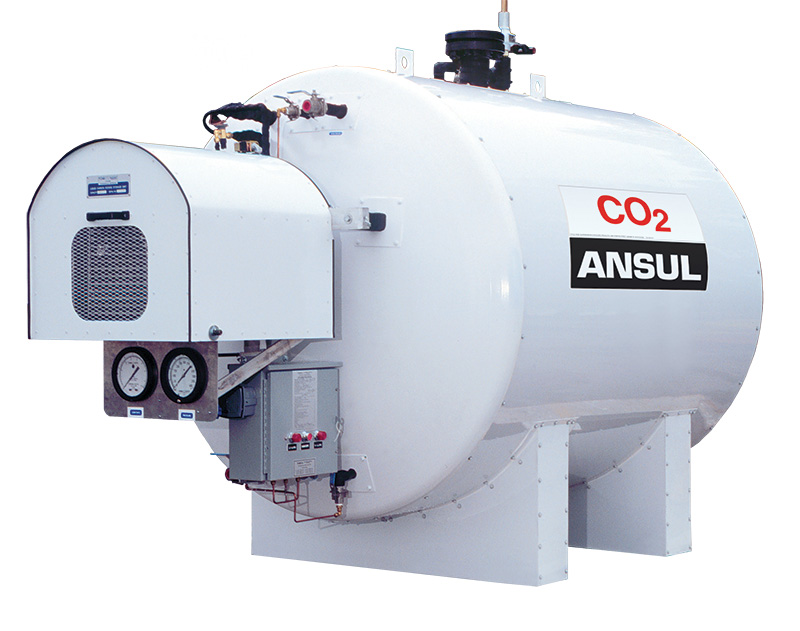

Low Pressure Systems –

Distribution of CO2 is accomplished through a selector valve or a hand-hose line arrangement. A selector valve arrangement is commonly used when multiple hazards are protected from a common supply manifold that is located in close proximity to the storage unit. The master and selector valve arrangement is typically used to protect several hazards from the same supply manifold where the selector valve is located close to the hazard and at a significant distance from the storage unit. Hand-hose lines can either be supplied from a separate low pressure storage unit or connected to the same storage unit that supplies a fixed pipe system. In all cases, the hand hose line has its own operating discharge valve. Lean more

Applications


The following are typical hazards protected by carbon dioxide systems:
* Printing presses
* Transformer vaults/electrical cabinets
* Open pits
* Dip tanks
* Rolling mills
* Ovens
* Coating machines
* Process equipment
* Exhaust and fume handling systems
* Flammable gas or liquid storage areas
* Generators
* Inerting applications

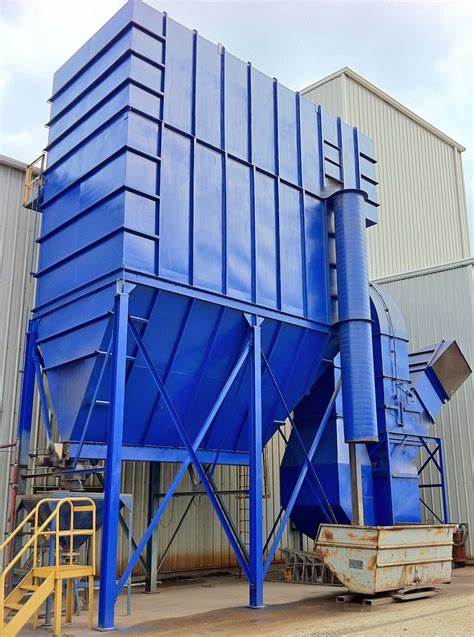

Dust Collector

Dust collectors are used in many industrial facilities to help maintain a cleaner work atmosphere, to meet environmental and pollution regulations, and to reclaim usable resources. A system of ductwork is used to pneumatically transport the debris to the dust collector. The two most common styles of dust collectors are the bag house style and the cyclone style. Ansul CO2 systems have a solution for these units. Learn more

Mini-Bulk Low Pressure CO2

The ANSUL® Mini-Bulk CO2 Fire Suppression System was developed to provide an alternative to manifolding high
pressure cylinders. The tanks are configured vertically to save valuable floor space. In applications where floor loading is of concern, Mini-Bulk tanks offer a significant reduction in lb/ft2 (kg/m2) when compared to multiple high pressure cylinders with the same total CO2 capacity. The Mini-Bulk tanks are available in capacities of 1,500 lb (680.4 kg). The tanks can be arranged as single tank, main and reserve, or manifolded together to provide additional storage capacity. Learn more

Fire protection is important to your business. Finding the solutions to your fire protection needs is something we have been doing since 1983. Our customers have found that they can trust the experience, knowledge, honesty, integrity and ethics of SSI’s sales team. We invite you to contact one of the members of this team to discuss how SSI can protect your employee’s life safety and your valuable assets for the continued operation and success of your company. Contact us at sales@suppressionsystems.com or 1-800-360-0687 for a System Sales and Design Consultant to assist you with your needs.

Great Knowledge, Great Service…It’s That Simple
